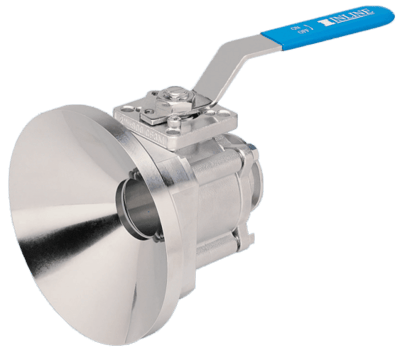

337F Tank Bottom Ball Valve
Images are representations only.

337F Tank Bottom Ball Valve

Brand: Inline Industries
Request Information
Favorite

Inline Industries Tank Bottom Ball Valve, 337F Inline Industries Tank Bottom Ball Valve, 337F
The 337F tank bottom ball valve is designed to meet your vessel requirements. The tank pad will accommodate most vessel designs.

The full port tube ID design improves flow and eliminates pooling.

The unique ISO 5211 direct mount pad allows mounting of most actuators without brackets and couplings.

  • Operating / Test Conditions:

  • Temperature Range (TFM seats): -20° to 450° F

  • Maximum Working Pressure (TFM seats): 1000 psi CWP (1") 800 psi CWP (1-1/2" - 2") 600 psi CWP (3" - 4")

  • Valves inspected and tested to API 598 and meet MSS SP-61 seat leakage requirements.

  • All materials comply with applicable ASTM material specifications, and FDA, USDA and ASME BPE 1997 material requirements.

  • All soft wetted parts comply with FDA CFR Title 21 Part 177.

  • Material test reports available upon request.

  • Options:

  • BPE compliant extended tube ends.

  • Clamp, tube butt weld, extended tube butt weld ends.

  • Polish and Electro-polish to customer's specification.

  • Cavity filled seats.

  • True Drain CIP.
    • Features
    • Tube Full Port Design:
      • True tube full port construction eliminates pooling of process media and improves flow characteristics for greater efficiency.
    • Made of Corrosion-Resistant 316L SS (A-351 Gr. CF3M):
      • One valve can be used for many service conditions.
    • ISO 5211 Direct Mount Pad:
      • No bracket or drive coupling needed for automation.
      • Eliminates exposed moving parts for safer work environment.
    • Improves actuator positioning and prevents side loading of the stem seal. High-Cycle, Live-Loaded Stem Packing:
      • Ensures tight seal.
      • Extends service life.
    • O-Ring Stem Bearing:
      • Maintains stem alignment
      • Reduces packing side loading and wear Enhances stem seal.
    • Blow-Out-Proof Stem:
      • Stem is bottom loaded to prevent removal when valve is in service.
    • 3-Piece Swing-in-Place Construction:
      • Easy to repair in service line.
    • Locking Device:
      • Enables plant personnel to secure valve in open or closed position when manually operated.
    • Investment Cast:
      • Improved dimensional control and reduced porosity.
    • Internal Surfaces Roll Burnished Prior To Final Polish:
      • Reduces surface porosity.
      • Improves surface finish.
