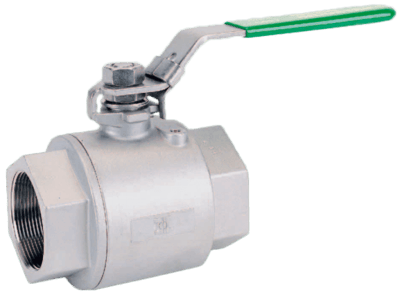

202F Ball Valve
Brand: Inline Industries
- Operating / Test Conditions:
- Temperature Range (RTFE): -20° to 420° F
- Maximum Working Pressure (RTFE): 1000 psi WOG (1/4"-2") 800 psi WOG (2-1/2"-3")
- All valves are shell and seat tested to ANSI/ASME B16.34 and API 598.
- Economical 2-Piece Design:
- Full Port:
- Full port construction improves flow characteristics for greater process efficiencies.
- Blow-Out-Proof Stem:
- Stem is bottom loaded to prevent removal when valve is in service.
- Live-Loaded Stem Packing:
- Provides constant load on the stem seal and extends service life.
- Locking Device:
- Enables plant personnel to secure valve in open or closed position when manually operated.
- Corrosion Resistant:
- Made of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life.
- Investment Cast:
- Improves dimensional control and reduces porosity.
