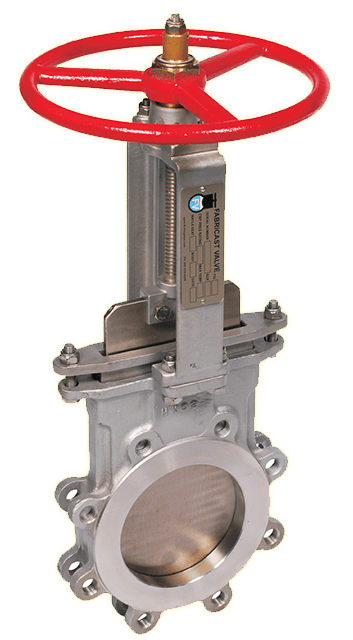

FIG 50 Knife Gate Valves
Brand: Fabricast ValveThe Fabricast FIG 50 is a resilient - rubber seated, perimeter sealed Bi-directional Knife Gate valve.
Designed and tested to MSS SP81 and ASME B16.5 specifications.
Features- Heavy Duty Cast CF8 304 Stainless Steel Body, Packing Gland, Yoke, Stemnut Retainer and Gate Clevis. Sizes larger than 24″ are Available in a Fabricated and Welded Design.
- Full Port
- 150 PSI CWP Rated
- Precision CNC Machined Valve Body and Stem
- ASTM a 240 304 Stainless Steel Gate Fully Machined and Surface Ground. All Edges are Chamfered to Extend Packing Life and to Provide a Superior Atmospheric Seal.
- 14″ and Larger Valves are Supplied with a Ball Bearing Yoke Bushing to Reduce Handwheel Rimpull
- Braided Teflon Synthetic Packing is Standard 3-11 PH Rating
- BUNA N Seat is Standard 180 Deg. F.
- Locking Fasteners are Standard on All Fabricast Valves
- Cast WCB Steel Handwheel - Weldable
- Easily Adapted to Air Cylinder, Hydraulic Cylinder, Bevel Gear, Lever or Electric Motor Operator - No Welding Required
