Tel-Tru Plastic Case Utility Pressure Gauge, Model 51
Images are representations only.

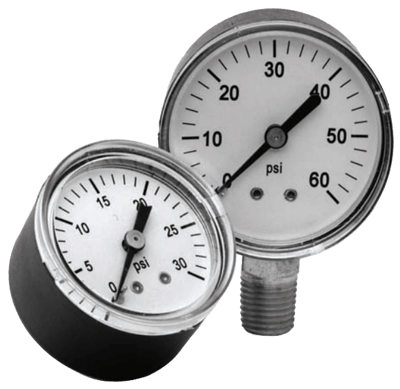

Model 51 Plastic Case Utility Pressure Gauge

Brand: Tel-Tru Manufacturing Co.
Request Information
Favorite

General utility gauge designed for the pool, spa, and irrigation industries.

View Details

Specifications

Brand

Accuracy

  • ± 3-2-3 % - ANSI Grade B

Applications

  • Irrigation Industry
  • Pool & Spa

Enclosure, Body Material

  • ABS Black Plastic (Dry Only)

Lens

  • Acrylic Lens

Materials of Construction

  • Bourdon Tube: Phosphor Bronze
  • Dial, Pointer: Aluminum
  • Socket: Brass

Movement

  • Brass

NPT Connection

  • 1/4” NPT Male
  • 1/8” NPT Male

Pressure Range

  • bar: -2.1 to 6.9
  • kPa: -206.8 to 689.5
  • psi: -30 to 100

Pressure Type

  • Gauge

Size

  • Dial: 1.5” (38.1 mm)
  • Dial: 2” (50.8 mm)

Documentation

Data Sheets

show more
