Tel-Tru 1.5% Stainless Steel Pressure Gauge, Model 32
Images are representations only.

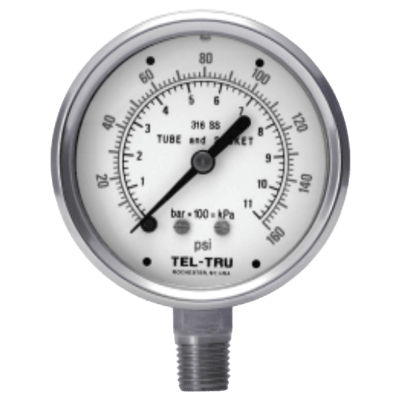

Model 32 1.5% Stainless Steel Pressure Gauge

Brand: Tel-Tru Manufacturing Co.
Request Information
Favorite

Corrosion resistant gauge for general service applications.

View Details

Specifications

Brand

Accuracy

  • 1.5 % of Full Scale - ANSI Grade A

Applications

  • General Service

Enclosure, Body Material

  • 304 Stainless Steel

Environmental Protection

  • IP65” Accordance with NF EN 60529

Fill Material

  • Glycerin
  • Silicone

Lens

  • Polycarbonate Lens

Materials of Construction

  • Bezel: 304 Stainless Steel Crimped
  • Bourdon Tube & Socket: 316 Stainless Steel
  • Dial (Heavy Gage), Pointer: Aluminum

Movement

  • 316 Stainless Steel

NPT Connection

  • 1/4” NPT Male

Pressure Range

  • bar: -2.07 to 689.48
  • Inches Hg: 0 to 30
  • kPa: -206.8 to 68,948
  • psi: -30 to 10,000

Pressure Type

  • Gauge

Size

  • Dial: 2.5” (63.5 mm)

Special Cleaning & Packaging

  • Cleaned for Oxygen Service (Dry)
