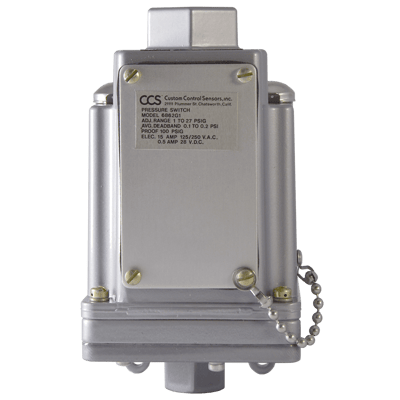

6862G Series Pressure Switch
Brand: Custom Control Sensors, LLC
Specifications
- Rigid and internally adjustable for convenient field set point adjustment.
- Repeatable and stable set points.
- High cycle life.
- High overpressure capability.
- Equipped with a certified explosion-proof electrical enclosure.
- Allows for dual set points.
Specifications
Area Classification
- Non-Hazardous Area
Approvals & Certifications
- CE
Set Point Adjustability
- Field Adjustable
Set Point Range - Increasing - psi
- Minimum: 1
- Maximum: 100
Set Point Range - Decreasing - psi
- Minimum: 0.95
- Maximum: 98.5
Set Point Range - Increasing - kPa
- Minimum: 6.895
- Maximum: 689.4757
Set Point Range - Decreasing- kPa
- Minimum: 6.55
- Maximum: 679.1336
Set Point Range - Increasing - bar
- Minimum: 0.069
- Maximum: 6.89
Set Point Range - Decreasing - bar
- Minimum: 0.065
- Maximum: 6.79
Deadband, Approx. - psi
- Minimum: 0.1
- Maximum: 1
Deadband, Approx. - mbar
- Minimum: 6.89
- Maximum: 68.9
System Pressure - Max.
- 75 psig : 5.17 bar : 3.59 kPa
- 200 psig : 13.79 bar : 9.58 kPa
Proof Pressure - Max.
- 100 psig : 6.89 bar : 4.8 kPa
- 250 psig : 17.2 bar : 1723.68 kPa
Process Connection Type & Size
- 1/4"-18 NPT Female
Process Connection Material
- Aluminum
Diaphragm Material
- Polyimide
O-Ring
- Buna-N
Enclosure Rating
- IP 65
- NEMA 4
- NEMA 13
Operating Temp. Range °C
- Minimum: -40
- Maximum: 86
Operating Temp. Range °F
- Minimum: -40
- Maximum: 186
Reset Function - Auto or Manual
- Auto
Electrical Connection Size
- 3/4" NPT Female Conduit Connection
Electrical Termination Type
- Terminal Strip
Electrical Contacts Form
- SPDT
Electrical Contacts Material
- Silver
- Gold
Voltage Electrical Rating
- 0 - 250 VAC
- 251 - 480 VAC
- 0 - 125 VDC
- 126 - 250 VDC
Ampere Rating
- 0.2 to 15 A
RoHS
Housing Material
- Aluminum
Gender
- Female
Standard Features
- Weatherproof
Electrical Contacts
- Silver
- Gold
Deadband, Approximate
- mbar: 6.89 to 68.9
- psi: 0.1 to 1
Diaphragm Material
- Polyimide
O-Ring Material
- Buna-N
Electrical Rating
- Gold Contacts Option: 1 A Max.
- SPDT: 15 A at 125/250/480 Vac Res, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
Proof Pressure
- bar: 6.89 to 17.24
- kPa: 689.5 to 1,724
- psig: 100 to 250
Set Point Range - Decreasing
- bar: 0.065 to 6.79
- kPa: 6.6 to 679.1
- psig: 0.95 to 98.5
Approvals & Certifications
- CE
- CRN - Canadian Registration Number
- CRN - Saskatchewan
- EMC
- LVD
- RoHS
Operating Temperature
- -40° to 86° C (-40° to 187° F)
Enclosure, Body Material
- Aluminum
Service
- Sweet - Oil & Gas
Process Connection
- 1/4" NPT Female
Electrical Connectors
- 3/4" NPT Female
Set Point Range - Increasing
- bar: 0.069 to 6.89
- kPa: 6.9 to 689.4
- psig: 1 to 100
System Pressure
- bar: 5.17 to 13.79
- kPa: 517.2 to 1,379
- psig: 75 to 200
Adjustment Type
- Field Adjustable
Environmental Protection
- IP 65
- NEMA 4
- NEMA 13
Area Classification
- Non-Hazardous Area
