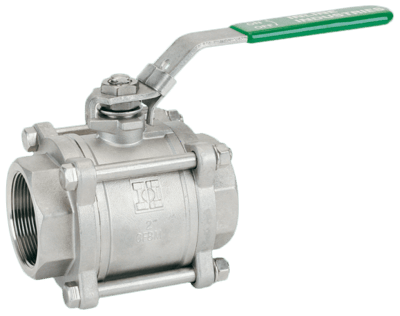

302F Ball Valve
Brand: Inline Industries
The 302F series ball valve delivers exceptional performance and economy in a 3-piece design.
Full porting improves flow rates and minimizes pressure drop through the valve.
Our unique metal-backed seat design enhances overall valve performance while our live-loaded stem packing automatically adjusts for wear and thermal variations.
- Operating / Test Conditions:
- Temperature Range (RTFE): -20° to 420° F.
- Maximum Working Pressure (RTFE): 1000 psi WOG (1/4"-2") 800 psi WOG (2 1/2"-3")
- All valves shell and seat tested to ANSI/ASME B16.34 and API 598
- All materials comply with applicable ASTM material specifications.
- End connections: All to B16.34; NPT to B1.20.1; socket weld to B16.11; butt weld to B16.25; flanged to B16.5 Options:
- End connections available in NPT, socket weld, Sch. 5/10/40 butt weld, grooved, and ANSI Class 150 and 300 flanged in 316SS or carbon steel.
- High-Cycle, Live-Loaded Stem Packing:
- Dynamic loading on stem packing ensures a tight seal through varying pressure and temperature conditions, reducing maintenance costs and extending service life.
- End Cap Alignment Step:
- Ensures easy and proper alignment between mating parts. Full Port Design:
- Improves flow resulting in increased process efficiencies.
- 3-Piece Construction:
- Easy to repair.
- Blow-Out-Proof Stem:
- Stem is bottom loaded to prevent removal when valve is in service.
- Locking Device:
- Enables plant personnel to secure valve in open or closed position when manually operated.
- Investment Cast:
- Improves dimensional control and reduces porosity.
