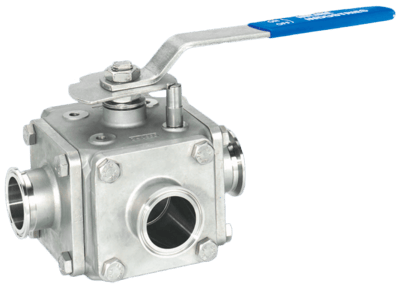

507F 3/4/5-Way Sanitary Ball Valve: 1/2" - 2"

The 507F is a true multi-way ball valve with balanced 4-seat construction which can reduce the number of process valves required in a piping system.

This full port valve is available in a number of flow configurations with both clamp and tube O.D. butt weld end connections.

Operating / Test Conditions:

Temperature Range (TFM): -20° to 400° F.

Maximum Working Pressure (TFM): 1000 psi (1/2" - 1") 800 psi (1-1/2" - 2") 600 psi (3" - 4")

All valves shell and seat tested to ANSI/ASME B16.34 and API 598.

All materials comply with applicable ASTM material specifications.

All soft wetted parts comply with FDA CFR Title 21 Part 17.

Options:

4- or 5-way construction with multiple flow patterns.

Clamp, tube O.D. butt weld, extended tube O.D. butt weld, or compression end connections.

Finer internal surface finishes available.

Features

Balanced 4-Seat or 5-Seat Construction:
- Unlike 2-seated diverter valves and other multi-port valves on the market, the 507F series has 4 seats (five seats in bottom entry valves) for positive shut-off in the closed position. This true multiport function can reduce the number of valves required in a process system and gives engineers greater design flexibility.
Trunnion Mounted Ball (1-1/2" - 4"):
- Lateral forces in a 3-way valve can cause unwanted seat distortion. Stem/ball isolation prevents side loading and wear of downstream seats improving performance and service life.
ISO 5211 Mounting Pad:
- High-Cycle, Live Loaded Stem Packing:
- Dynamic loading on stem packing ensures a tight seal through varying pressure and temperature conditions, extending service life and reducing maintenance costs.
Blow-Out-Proof Stem:
- Stem is bottom loaded to prevent removal when valve is in service.
Full Port Design:
- Full port construction improves flow characteristics for greater process efficiencies.
