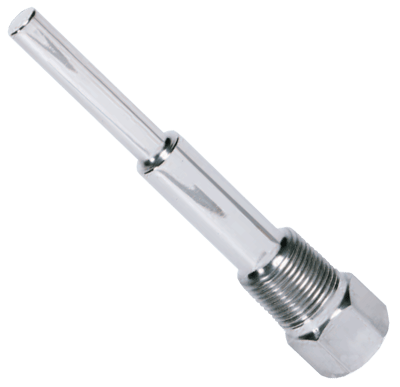

Model GW Standard Threaded Thermowell

Brand: Tel-Tru Manufacturing Co.

Application: Fits liquid-in-glass thermometers made to SAMA standards. Tapered bore is made 0.008" oversize to eliminate possibility of thermometer bulb expanding into the thermowell thus preventing removal. Also meets Federal GG-T-321C standards.
Features
  • Produced using highest quality material and workmanship
  • Machined from solid bar stock for standard or high velocity requirements in a large selection of materials and coatings
  • Designed and manufactured to assure perfect alignment with the thermometer stem

Specifications

Bore Size

  • 0.008” (0.2 mm)

Diameter

  • Shank Diameter: 1” (25.4 mm)
  • Shank Diameter: 7/8” (22 mm)

Insertion 'U' Length

  • 11-1/16” (28 cm)
  • 2-9/16” (6.5 cm)
  • 5-1/16” (13 cm)
  • 7-1/16” (18 cm)
  • 8-1/16” (20.5 cm)

Length

  • Bulb: 3-5/8” to 12-1/8” (92 to 308 mm)
  • Nominal Socket Length: 3-1/2” to 12” (89 to 304.8 mm)

Materials of Construction

  • 304 Stainless Steel
  • 316 Stainless Steel
  • Brass (ASTM B-16)
  • Carbon Steel (C-1018)
  • Monel

Media

  • Liquids

NPT Connection

  • 1” NPT Male
  • 3/4” NPT Male
