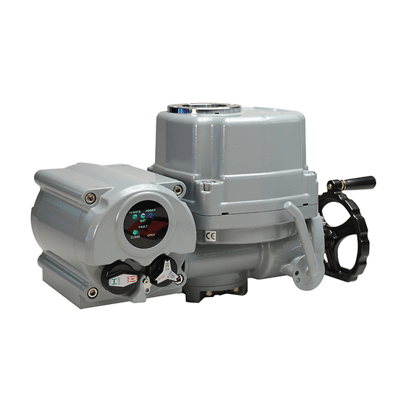

EIM HQ-Series Quarter-Turn Electric Valve Actuator
Brand: EIMCompact, easy to use electric quarter-turn actuator that is durable and suitable for butterfly, ball, and plug valves, including damper control. Ideal for marine application.
Features- Compact, easy to use electric actuator that is durable, robust in design with outstanding performance.
- Small and lightweight produces high torque output - HQ-004 weighs only 2.6lbs(1.3kg) produces 350 in-lbs(40 N-m) of torque.
- Simple and color-coded electrical and mechanical design makes maintenance quick and easy and limit switch settings can be adjusted without disturbing other switch settings.
- EIM actuator gear housings are factory filled with a high quality lubricant carefully selected to ensure proper performance under specified operating conditions.
- 4-20mA input signal and output transmitter for position control and feedback, ideal for modulating applications.
- Rechargeable battery backup (RBB) to permit local and remote fail safe operation, up to five times within one hour.
- Modbus RTU control card for 2-wire digital network communication.
- Remote push button stations for applications with limited access to local controls.
Specifications
Brand
Actuation
- Electric
Approvals & Certifications
- ATEX, IECEx, UL, CSA
Control Type
- ON/OFF, ESD
Product Type
- Electric Actuator
Valve Type
- Ball, Butterfly, Plug, Triple Offset
