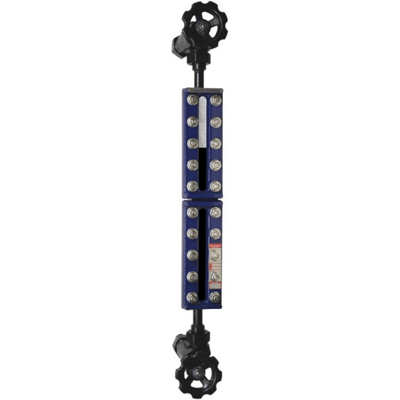

Steam-Trac ST-350 Direct Reading Steam/Water Level Gauge

Brand: Quest-Tec Solutions

The Steam-Trac ST-350 is designed specifically for steam service to 350 psi. The reflex borosilicate glass has prisms molded into the process side which will display black for water and white for steam.

All connectors and materials fully comply with ASME requirements, and the gage may be used as a Direct Reading Sight Glass for compliance to ASME PG-60. Since water appears completely different than steam, it is not necessary to have overlapping sections.

Multiple section gages will have a continuous chamber constructed of a single piece of bar.
Features
  • Fully compliant with ASME as a Direct Reading Water Gauge
  • Multiple sections, continuous one-piece chamber
  • Spring washers for constant torque
  • Recessed gasket face in chamber and cover
  • Custom built per specifications
  • Bolts, nuts and washers are nickel plated
  • High temperature coating

Specifications

Approvals & Certifications

  • ISO 9001: 2008

Approvals & Certifications

  • ANAB

Cover Material

  • Forged Carbon Steel

Materials of Construction

  • Chamber: A-696 Grade C, Carbon Steel

Process Connection - Threaded

  • 1” Thread
  • 1/2” Thread
  • 1-1/2” Thread
  • 2” Thread
  • 3/4” Thread

Process Connection Style

  • Flanged

Welded Connection

  • 1” Socket Weld End
  • 1/2” Socket Weld End
  • 1-1/2” Socket Weld End
  • 2” Socket Weld End
  • 3/4” Socket Weld End
