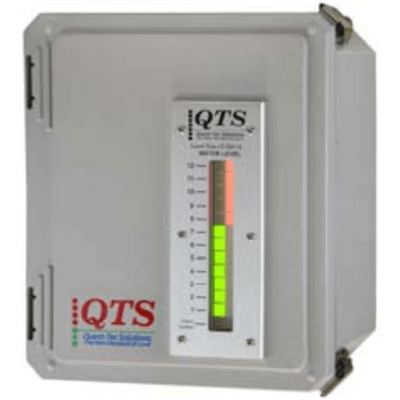

Level-Trac LT-220 Electronic Control Unit

Brand: Quest-Tec Solutions

The Level-Trac Model LT-220 Electronic Control Unit is a component of a remote level indication system, as described in ASME Section I, PG-60.

The control unit may also be used as an alarm or trip device.

Discrimination between water and steam is based on the significant difference in resistivity between the two states over the saturation range.

The control unit interprets and displays the signal from up to 14 probes mounted in a probe manifold.

Via voltage applied to the probe tip, conduction in the presence of water will occur between the tip and the inside wall of the column.
Features
  • One to Fourteen Probe Channels
  • 4-20 mA Output Signal
  • Field Programmable Alarm and Trip Points
  • Voting Logic for Trips
  • Dual Power Supply
  • Sequence Fault Detection

Specifications

Approvals & Certifications

  • ISO 9001: 2008

Approvals & Certifications

  • ANAB

Enclosure, Body Material

  • Polyester
  • Stainless Steel

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Operating Temperature

  • Ambient Operating Temperature Rating: -25° to 70° C (-13° to 158° F)
