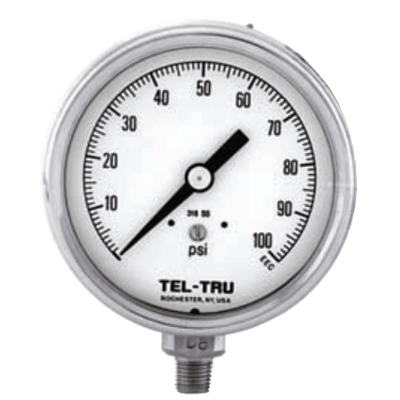

Model 30 1% Stainless Steel Pressure Gauge
Brand: Tel-Tru Manufacturing Co.
Designed for heavy duty service in process and industrial applications such as chemical, petrochemical, power, food processing and biotechnology.
Specifications
Accuracy
- ± 1 % of Full Scale - ANSI Grade 1A
Applications
- Biotechnology
- Chemical Industry
- Food Processing
- Petrochemical
- Power
BSP Connection
- 1/2” BSP Male Straight
- 1/2” BSPT Male
- 1/4” BSP Male Straight
- 1/4” BSPT Male
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- IP65” Accordance with NF EN 60529
Fill Material
- Glycerin
- Silicone
Lens
- Laminated Safety Glass
Materials of Construction
- Bezel: 304 Stainless Steel Bayonet Lock Typical
- Bourdon Tube & Socket: 316 Stainless Steel
- Bourdon Tube & Socket: Monel
- Dial: Heavy Gage Aluminum
Mounting
- Front Flange Available on Back Mounting
Movement
- 316 Stainless Steel with Overload/Underload Stops
- Monel with Overload/Underload Stops
NPT Connection
- 2-1/2” (Lower or Center Back), 4” (Lower or Lower Back): 1/4” NPT Male
- 4”, 6” (Lower or Lower Back): 1/2” NPT Male
Pressure Range
- bar: -2.1 to 1,034
- Inches Hg: 0 to 30
- kPa: -206.8 to 103,421
- psi: -30 to 15,000
Pressure Type
- Gauge
Size
- Dial: 2.5” (63.5 mm)
- Dial: 4” (101.6 mm)
- Dial: 6” (152.4 mm)
Special Cleaning & Packaging
- Cleaned for Oxygen Service (Dry Only)
