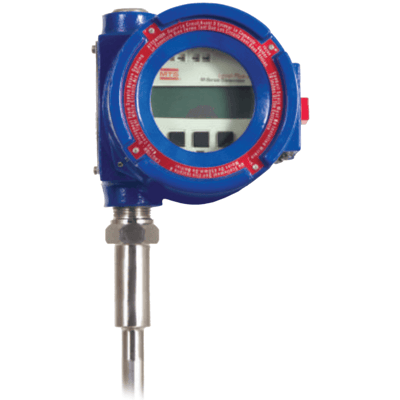

MTLT-5000 Level Transmitter
Brand: Quest-Tec Solutions
The MTLT-5000 is based upon the magnetostrictive principle. The sensing tube contains two wires which are pulsed with the magnetic field created by the magnetic float causes a torsion stress wave to be induced in the wire.
The torsion propagates along the wire at a known velocity from the position of the magnetic float and toward both ends of the wire.
The microprocessor-based electronics measure the elapsed time between the start and return pulses and convert it into 4-20 mA DC output which is proportional to the level being measured.
Features- Designed to mount externally to the Magne-Trac
- No maintenance required
- Multidrop HART Communications
- FM Approved Explosion Proof/IS
- NEMA 4X/7 enclosure
- Modular design
- Adjustable output damping
- Up to 0.001" resolution
- 2-wire loop-powered
- RFI/EMI protection
- Offers a 4/20 mA 2-wire loop-powered circuit for continuous level measurement
- Available in lengths up to 300 inches
- Process temperature range: -30° to 400° F
- The Non-Contact design ensures no wear to the sensing element, thus requiring no maintenance or recalibration
Specifications
Brand
Approvals & Certifications
- ANAB
- ATEX
- CSA (Intrinsically Safe, Explosion-proof: Class I, Grade A, B, C, D Class II, Groups E, F, G Div. 1, NEMA Typical 4X)
- FM
- PTB
Approvals & Certifications
- ISO 9001: 2008
Environmental Protection
- IP66
- NEMA 4X
- NEMA 7
Output
- 4-20 mA
Pressure Range
- bar: 0 to 68.95
- kPa: 0 to 6,895
- psi: 0 to 1,000
Wetted Materials
- 316L Stainless Steel
