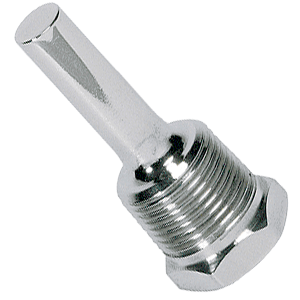

Model 260TWA Limited Space Thermowell
Brand: Tel-Tru Manufacturing Co.Application: Used where short insertion length is necessary such as in short legs of tees, etc. This thermowell also fits the 2-1/2" stem length of a bimetal thermometer with a 1/4" stem diameter.
Features- Machined from solid bar stock for standard or high velocity requirements in a large selection of materials and coatings
- Designed and manufactured to assure perfect alignment with the thermometer stem
Specifications
Bore Size
- 0.260" (6.6 mm)
Diameter
- Stem Diameter: 1/4" (6.35 mm)
Insertion 'U' Length
- 1" (2.54 cm)
- 1-5/8" (4 cm)
Materials of Construction
- 304 Stainless Steel
- 316 Stainless Steel
- Brass (ASTM B-16)
- Carbon Steel (C-1018)
- Monel
NPT Connection
- 1" NPT Male
- 1/2" NPT Male
- 3/4" NPT Male
Stem Length
- 2-1/2" (6.35 cm)
