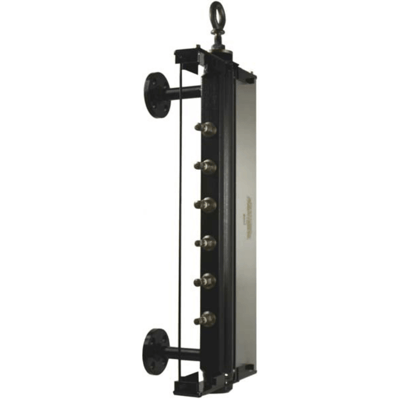

Level-Trac LT-500 Probe Manifold

Brand: Quest-Tec Solutions

The Level-Trac Model 500 probe manifold features sturdy construction in full compliance with ASME Section 1 requirements.

Each column is custom built to the customer’s individual specifications. The chamber is a custom extrusion designed to provide full probe thread engagement.
Features
  • Max 1000 psi
  • SA-105 Extruded Chamber
  • Horizontal Probe Mounting
  • Probe Spacing per Customer’s Requirements
  • Optional Connections for Direct Reading Sight Glasses
  • Type 800, TFE Insulated Probe
  • Piping Connections to Meet Customer Specifications

Specifications

Approvals & Certifications

  • ANAB

Approvals & Certifications

  • ISO 9001: 2008

Mounting

  • Horizontal Probe Mounting

Pressure Rating

  • psi: 1,000 (kPa: 6,894, bar: 69) Steam Working Pressure, 550° F

Sensor, Probe Material

  • TFE Insulated Probe, Metaflex Gasket Seal
