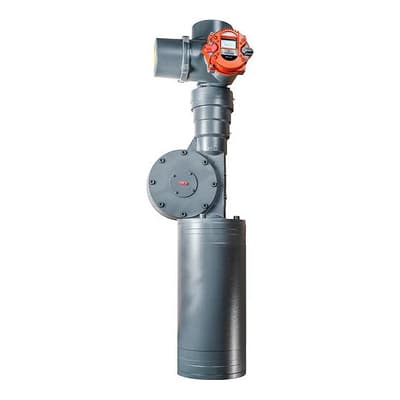

Bettis RTS FQ Fail-Safe Quarter-Turn Electric Actuator
Brand: Bettis - by Emerson Electric Co.A non-intrusive intelligent fail-safe quarter-turn actuator for ON/OFF and modulation control in fail-safe applications.
The robust and compact mechanical spring return design can be triggered to fail-safe action either on loss of power or signal.
With no dependency on super-capacitor or battery-backup, this state of the art design is widely used on valves for oil & gas, power, chemical, HVAC, and water and wastewater industries.
Features- Intelligent and non-intrusive
- On/Off (S2) and Continuous modulation (S9)
- Up to 3687 ft-lbs ( 5000 Nm) Electric Torque
- Mechanical driven fail-safe operation ( Fail Clockwise or Counter-Clockwise )
- Direct coupling on the fail-safe with the valve shaft
- Adjustable speeds
- Fail-safe trigger selectable in case of drop-off 24 VDC fail-safe signal or main power supply
- Position resolution .1%
- SIL3 capable
- Option De-clutchable handwheel
- Rotatable in 90 degree steps with remote mounting option
- Local User Interface with wireless Bluetooth control capability for configuration, monitoring and diagnostics
