P321 Sanitary Pressure Transmitter

Brand: Tel-Tru Manufacturing Co.

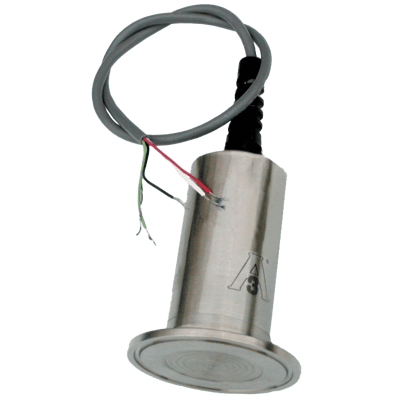

Tel-Tru’s P321 Series is designed for the OEM and end user where ruggedness, high performance, and reliability are required. Key feature of the all welded sensing element is its isolation from induced stresses. This results in negligible zero and span offsets due to the installation clamping force effects. This product is modular and is configurable. The P321 is built using advanced manufacturing techniques, with automated welding procedures, extreme environmental burn-in and thorough residual stress relieving techniques. The P321 NEMA 4X packaging ensures reliable service in the wash-down environments of the sanitary industry regardless of signal output or pressure format. Every P321 sensing diaphragm is “backed-up” with a solid piece of stainless steel which greatly improves the resistance to sharp objects and overpressure.

Specifications

Accuracy

  • Static Accuracy: ± 0.1 % of Full Scale Output
  • Static Accuracy: ± 0.25 % of Full Scale Output (BFSL, RSS) Combined Effects of Non-Linearity, Hysteresis & Repeatability,

Applications

  • Biotechnology
  • Cosmetics
  • Dairy Processing
  • Food & Beverage Processing
  • Pharmaceutical

Approvals & Certifications

  • 3A Sanitary Standard 74-06

Approvals & Certifications

  • CE EN 50081-2, EN 50082-2

Burst Pressure

  • 5 times Full Scale, Max.

Communication

  • HART

Compensated Temperature

  • -17.8° to 76.7° C (0° to 170° F)

Electrical Connectors

  • 1/2” NPT Male Conduit Connection with 2 to 50 feet Wire Pigtail
  • 4-Pin Bendix
  • 6-Pin Bendix
  • Mini DIN 43650C Connector with Mate
  • NEMA 4X Cable Exit [24” (610 mm) Cable]
  • Pigtail Connector (10, 20, 30, 50 feet Wire)

Electrical Protection

  • Short Circuit Protected: up to 40 Vdc

Environmental Protection

  • IP66
  • NEMA 4X

Excitation Voltage

  • 16-38 Vdc - P321K
  • 8-38 Vdc

Insulation Resistance

  • 1,000 megaohms at 50 Vdc

Materials of Construction

  • Non-Wetted Part: 316 Stainless Steel & Electrical Connector

NACE & NIST

  • NIST Traceable Calibration Certificate

Operating Temperature

  • -40° to 93° C (-40° to 200° F)

Output

  • 0-10 Vdc - P321K
  • 0-5 Vdc, 3-Wire - P321B
  • 4-20 mA, 2-Wire - P321A

Power Supply Effect

  • ± 0.002 % of Full Scale Output Per V Input

Pressure Range

  • bar: -1 to 68.9
  • kPa: -101.4 to 6,895
  • psi: -14.7 to 1,000

Pressure Type

  • Absolute
  • Compound Pressure
  • Gauge
  • Vacuum

Proof Pressure

  • 2 x Full Scale

Repeatability

  • ± 0.05 % of Full Scale Output

Resolution

  • Infinite (± 0.001 % of Full Scale Output Usable)

Response Time

  • < 5 milliseconds

Reverse Polarity Protection

  • Yes

RFI/EMI Protection

  • Internal Filtering

Stability

  • Long Term Stability: ± 0.25 % of Full Scale Output Per Year

Storage Temperature

  • -40° to 121° C (-40° to 250° F)

Temperature Effect

  • ± 1.5 % of Full Scale Output over Compensated Range [Combined Effects of Zero & Full Scale Output with Reference at 21° C (70° F)]

Tri-Clamp Connection

  • 1” Tri-Clamp
  • 1-1/2” Tri-Clamp
  • 2” Sanitary Clamp (2” Cherry Burrell)
  • 2” Tri-Clamp
  • 2-1/2” Tri-Clamp
  • 3” Tri-Clamp

Update Time

  • Warm-Up: < 10 milliseconds

Wetted Materials

  • 316L Stainless Steel

Zero Balance

  • ± 1 % of Full Scale Output
