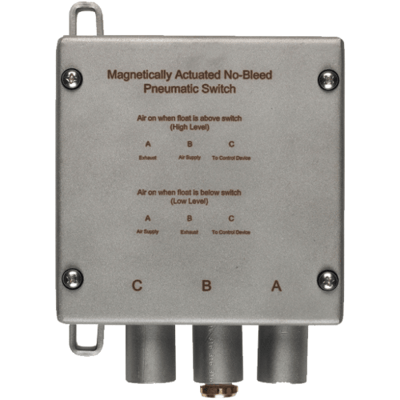

MLTS-PNEU Non-Bleed Pneumatic Switch

Brand: Quest-Tec Solutions

Quest-Tec Solutions MLTS-PNEU Pneumatic Switch deliver a consistent point switching in magnetic level applications to trigger alarms and to open and close valves with pneumatic actuators.

This non-bleed, block and bleed pneumatic switch functions according to the rise or fall of the magnetic float according to the level condition.
Features
  • Attached directly to chamber. Easily adjustable with clamps – no additional piping required
  • Integral high volume, rapid response relay
  • Magnetic Coupling design concept – no direct connection with process fluid
  • Non-Corrosive housing
  • Vibration resistant
  • NEMA 4, stainless steel enclosure

Specifications

Deadband

  • 0.5”

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP66
  • NEMA 4

Operating Temperature

  • -18° to 93° C (0° to 200° F)

Supply Pressure

  • Vacuum to psig: 0 to 200 (kPa: 0 to 1,379, bar: 0 to 13.79)
