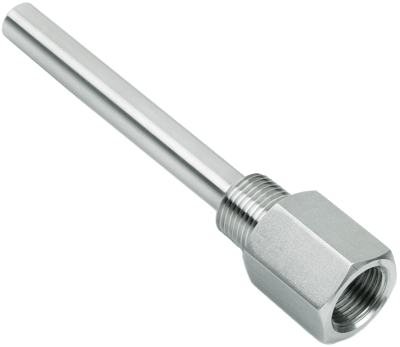

Model 385TWE General Use Sandard Threaded Thermowell with Lagging Extension

Brand: Tel-Tru Manufacturing Co.

Application: Standard length, 3/8" stem diameter, bimetal thermometers; #14 gauge thermocouple elements; unarmored liquid-in-glass test thermometers; other temperature sensing elements having 0.377" maximum diameter.
Features
  • Machined from solid bar stock for standard or high velocity requirements in a large selection of materials and coatings
  • Designed and manufactured to assure perfect alignment with the thermometer stem

Specifications

Bore Size

  • 0.385” (9.78 mm)

Diameter

  • Shank Diameter: 49/64” (19.4 mm)
  • Stem Diameter: 3/8” (9.5 mm)

Insertion 'U' Length

  • 10-1/2” (26.7 cm)
  • 13-1/2” (34.3 cm)
  • 19-1/2” (49.5 cm)
  • 2-1/2” (6.4 cm)
  • 4-1/2” (11.4 cm)
  • 7-1/2” (19.1 cm)

Lagging Extension

  • 2”
  • 3”

Materials of Construction

  • 304 Stainless Steel
  • 316 Stainless Steel
  • Brass (ASTM B-16)
  • Carbon Steel (C-1018)
  • Monel

Media

  • Liquids

NPT Connection

  • 1” NPT Male
  • 3/4” NPT Male

Stem Length

  • 6” to 24” (15 to 61 cm)
