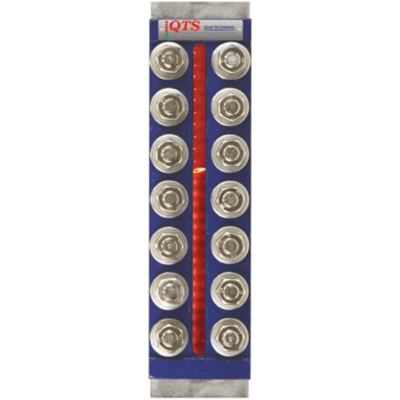

Steam-Trac ST-1600 Direct Reading Steam/Water Level Gauge
Brand: Quest-Tec SolutionsSteam-Trac ST-1600 steam gauges are ruggedly built to set the industry standard for reliability in the difficult mid-pressure range from 1,000 to 1,600 psi Working Steam Pressure.
All material and construction standards are within strict compliance of ASME section 1 code requirements.
Features- Fully compliant with ASME as a Direct Reading Water Gauge
- Multiple sections with minimum 1" overlap
- Spring washers for constant torque
- Recessed gasket face in chamber and cover
- Custom built per specifications
- Studs, nuts and washers are nickel plated
- High temperature coating
Specifications
Brand
Approvals & Certifications
- ANAB
Approvals & Certifications
- ISO 9001: 2008
Cover Material
- A516, Grade 70 Carbon Steel
Materials of Construction
- Chamber: A516, Grade 70 Carbon Steel
Process Connection - Threaded
- 1” Thread
- 1/2” Thread
- 1-1/2” Thread
- 2” Thread
- 3/4” Thread
Process Connection Style
- Flanged
Welded Connection
- 1” Socket Weld End
- 1/2” Socket Weld End
- 1-1/2” Socket Weld End
- 2” Socket Weld End
- 3/4” Socket Weld End
