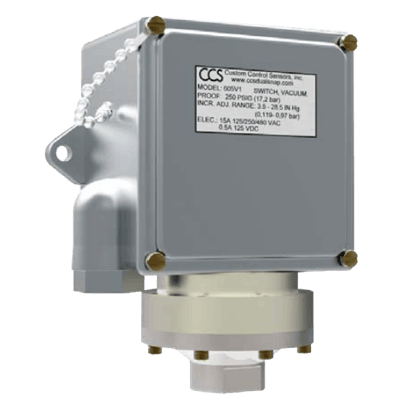

605V Series Pressure Switch
Brand: Custom Control Sensors, LLCSpecifications
- Adjustable Set Point Range - VACUUM
- Increasing
- Inches Hg 3.5 - 28.5
- mm Hg 89 - 724
- Decreasing
- Inches Hg 1 - 26
- mm Hg 25 - 660
- Increasing
- Deadband - Approximate: 2.5 Inches Hg, 64 mm Hg
- System Pressure - Maximum: 150 psig, 1,034 kPa, 10.3 bar
- Proof Pressure: 250 psig, 1,723 kPa, 17.2 bar
- Wetted Materials:
- Pressure Port: 1/4" Female NPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT or DPDT
- CRN, CE Mark, General Purpose
Specifications
Adjustment Type
- Field Adjustable
Approvals & Certifications
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - Saskatchewan
- CSA
- EMC
- LVD
- PED
- RoHS
Deadband, Approximate
- Inches Hg: 2.5
- mmHg: 64
Diaphragm Material
- Polyimide
Electrical Connectors
- Terminal Strip - Internal
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
- 5 A at 125/250 Vac Resisitve, 5 A at 28 DC, 0.5 A at 125 DC
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
- IP66
- NEMA 13
- NEMA 4, 13 / IP65, 66
- Non-Hazardous Area
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Buna-N
- Ethylene Propylene (EPR)
- Viton
Operating Temperature
- -40° to 86° C (-40° to 187° F)
Process Connection Material
- Aluminum
Proof Pressure
- bar: 17.24
- kPa: 1,724
- psig: 250
Service
- Sweet (Oil & Gas)
Set Point - Decreasing
- Inches Hg: -1 to 26
- mmHg: -25 to 660
Set Point - Increasing
- Inches Hg: -3.5 to 28.5
- mmHg: -89 to 724
Standard Features
- Internal Case Ground
- Weatherproof
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 10.3
- kPa: 1,034
- psig: 150
