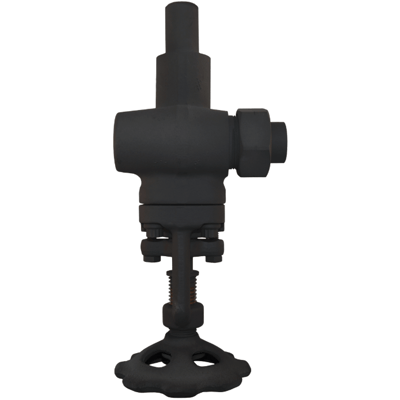

Steam-Trac SV-1600 Water Gauge Valve

Brand: Quest-Tec Solutions

Quest-Tec Solutions Type SV-1600 valves are designed specifically for use with water level gauges in steam/ water service. The angled flow path compactly facilitates installation of the level gauge bringing the assembly connection point to the side.

The valve has a reciprocating stem that does not rotate, maximizing packing life and preventing galling of the valve seat. The lower valve is normally supplied with a blowdown/drain connection.
Features
  • Outside Screw and Yoke Design
  • 90º Angle Flow Path
  • Bolted Bonnet
  • Offset Valve Body
  • Back Seating Stem
  • Reciprocating Stem

Specifications

Enclosure, Body Material

  • Forged Carbon Steel

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1-1/2” NPT Female
  • 2” NPT Female
  • 3/4” NPT Female
  • 3/4” NPT Male

Process Connection Style

  • 1/2”, 3/4”, 1”, 1-1/2”, 2” Flanges

Welded Connection

  • 1” Socket Weld End Male
  • 1” Socket Weld End
  • 1-1/2” Socket Weld End Male
  • 1-1/2” Socket Weld End
  • 2” Socket Weld End Male
  • 2” Socket Weld End
  • 3/4” Socket Weld End Male
  • 3/4” Socket Weld End
