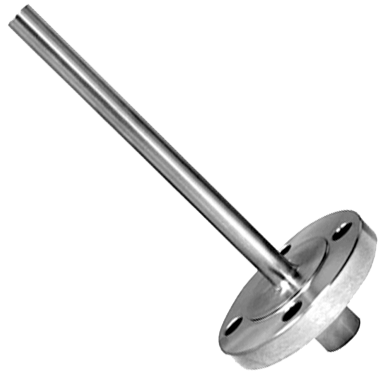

Model 385TWF Flanged Thermowell

Brand: Tel-Tru Manufacturing Co.
Request Information
Favorite

Application: 1" and 1-1/2" flanges in all facings and pressure ratings are standard. Other sizes are available on application. Machined to meet ANSI B-16.5. Traceable to mill test reports.
Features
  • Machined from solid bar stock for standard or high velocity requirements in a large selection of materials and coatings
  • Designed and manufactured to assure perfect alignment with the thermometer stem

View Details

Specifications

Brand

Approvals & Certifications

  • Mill Certificate

Bore Size

  • 0.385” (9.78 mm)

Diameter

  • Shank Diameter: 7/8” (22 mm)

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 1500#
  • 1-1/2” (DN 40) - 2500#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - 600#
  • 1-1/2” (DN 40) - 900#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 1500#
  • 1” (DN 25) - 2500#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - 600#
  • 1” (DN 25) - 900#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 1500#
  • 2” (DN 50) - 2500#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - 600#
  • 2” (DN 50) - 900#

Flange Type

  • Flat Face (FF)
  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Insertion 'U' Length

  • 10” (25.4 cm)
  • 13” (33 cm)
  • 16” (40.6 cm)
  • 2” (5 cm)
  • 22” (56 cm)
  • 4” (10.1 cm)
  • 7” (17.8 cm)

Materials of Construction

  • 304 Stainless Steel
  • 316 Stainless Steel
  • Carbon Steel (C-1018)
  • Monel

Stem Length

  • 4” to 24” (10 to 61 cm)
